The final drive of an excavator, also known as the undercarriage, is a critical component that enables the machine to move efficiently across various terrains. It consists of several key parts, including the tracks, drive motors, sprockets, idlers, and rollers, all working together to provide stability, traction, and mobility.
The tracks are the primary means of movement for the excavator. They provide a large surface area that distributes the machine’s weight, allowing it to traverse soft or uneven ground without sinking. Tracks are typically made of durable materials, such as steel or rubber, to withstand harsh working conditions.
The drive motors are responsible for powering the tracks. They convert hydraulic energy into mechanical energy, enabling the excavator to move forward, backward, and turn. The efficiency of the drive motors directly impacts the machine’s performance and speed.
Sprockets are toothed wheels that engage with the tracks. They play a crucial role in transferring power from the drive motors to the tracks, facilitating movement. Proper alignment and maintenance of the sprockets are essential for smooth operation.
Idlers are located at the front and rear of the undercarriage and help guide the tracks. Rollers support the weight of the excavator and reduce friction as the tracks move over them. Both components contribute to the overall stability and durability of the travel assembly.
The travel assembly allows the excavator to navigate various job sites, from construction to demolition and landscaping. Its design enables the machine to climb slopes, cross ditches, and maneuver in tight spaces. The ability to move efficiently is crucial for maximizing productivity and minimizing downtime.
Regular maintenance of the final drive is vital for ensuring the excavator’s reliability and performance. This includes checking the tension of the tracks, inspecting the drive motors, and lubricating the rollers and idlers. Neglecting maintenance can lead to premature wear, reduced efficiency, and costly repairs.
In summary, the travel assembly of an excavator is a fundamental component that enables mobility and stability on various terrains. Understanding its key components and functions is essential for operators and maintenance personnel to ensure optimal performance and longevity of the machine. Regular maintenance and timely repairs are crucial for keeping the travel assembly in excellent working condition, ultimately enhancing the overall efficiency of the excavator.
Final drive 1
Final drive 2

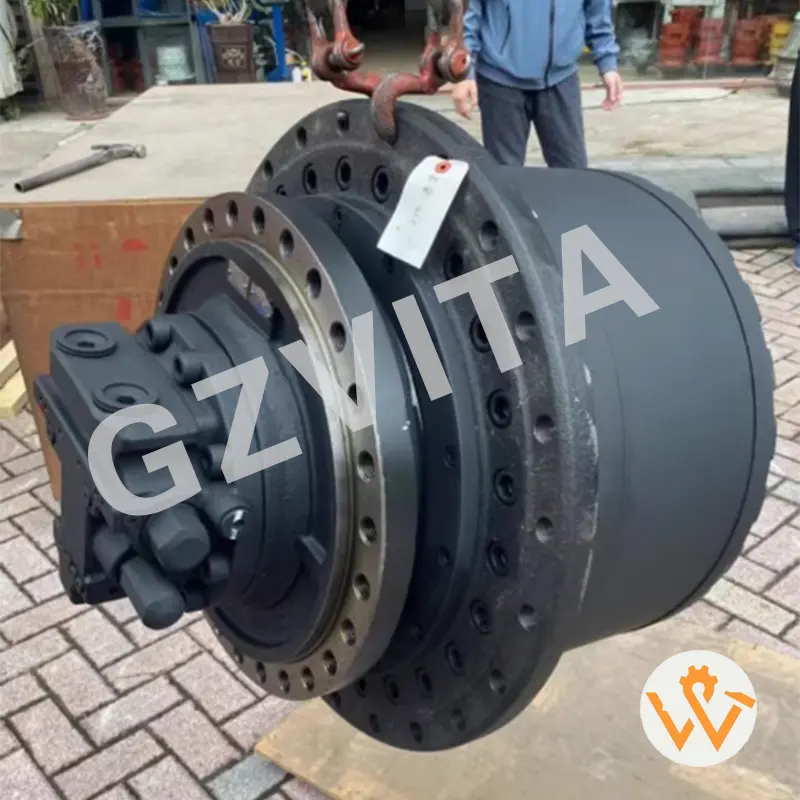

Final drive 3

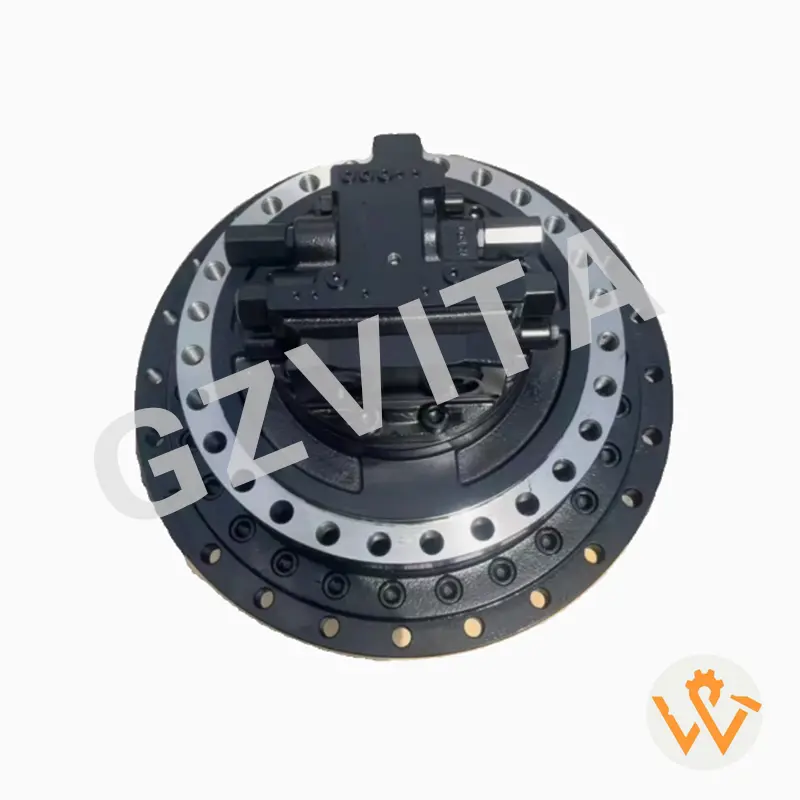

Final drive 4
The travel assembly, or final drive, enables mobility, traction, and stability. It allows the excavator to navigate diverse terrains, climb slopes, maneuver in tight spaces, and cross ditches safely.
Drive motors convert hydraulic energy into mechanical energy to power the tracks. The efficiency of these motors directly determines the operating speed, power, and general performance of the excavator.
Sprockets are toothed wheels that mesh directly with the track links. They transfer mechanical power from the drive motors to the tracks, enabling the tracks to rotate and move the machine.
Idlers guide and maintain tension on the tracks from the front and rear. Rollers support the heavy weight of the excavator chassis and minimize movement friction as the tracks roll across the ground.
Important maintenance tasks include regular inspections of the drive motors, monitoring and adjusting track tension, and ensuring that all rollers and idlers are properly lubricated to avoid friction wear and costly repairs.
