Notice for Installing the Main Pump on an Excavator
Installing the main hydraulic pump on an excavator is a critical task that requires careful attention to detail to ensure proper operation and longevity of the hydraulic system. Below is a comprehensive notice outlining the key steps and considerations for installing the main pump.
Safety Precautions
Personal Protective Equipment (PPE)
Always wear appropriate safety gear, including gloves, goggles, and a hard hat.
Disconnect Power
Before starting the installation, ensure that the excavator is turned off, the battery is disconnected, and the hydraulic system is depressurized to prevent accidental operation.
Tools and Materials Needed
New main hydraulic pump
Gaskets or O-rings
Hydraulic fluid
Wrenches and sockets
Torque wrench
Screwdrivers
Clean rags
Inspection mirror (optional)
Safety gear
Preparation & Old Pump Removal
1
Read the Manual
Review the excavator's service manual for specific instructions related to the main pump installation, including torque specifications and any special procedures.
2
Gather Tools and Parts
Ensure you have all necessary tools and replacement parts ready before starting the installation.
3
Drain Hydraulic Fluid (If Applicable)
If necessary, drain the hydraulic fluid from the system to prevent spills during the removal process.
4
Disconnect Hoses and Lines
Carefully disconnect hydraulic hoses and lines from the old pump. Use appropriate tools to avoid damaging fittings.
5
Remove Mounting Bolts
Use a wrench to remove the mounting bolts securing the old pump to the engine or hydraulic system. Carefully lift the old pump out of its mounting position.
Inspection and Installation Steps
6
Clean the Mounting Surface
Thoroughly clean the mounting surface where the new pump will be installed. Remove any old gasket material or debris to ensure a proper seal.
7
Check for Damage
Inspect the surrounding components for any signs of wear or damage that may need to be addressed before installing the new pump.
8
Position the New Pump
Carefully position the new main hydraulic pump in place, aligning it with the mounting holes.
9
Install Gaskets or O-rings
If applicable, install new gaskets or O-rings to ensure a proper seal between the pump and the mounting surface.
10
Secure the Pump
Insert and hand-tighten the mounting bolts. Use a torque wrench to tighten the bolts to the manufacturer's specified torque settings, ensuring even pressure across the pump.
11
Attach Hoses and Check Routing
Reconnect the hydraulic hoses and lines to the new pump, ensuring that they are properly secured and free of leaks. Ensure that hoses are routed correctly to avoid kinks or damage during operation.
12
Refill the System and Check for Leaks
If hydraulic fluid was drained, refill the hydraulic system with the appropriate type and amount of hydraulic fluid as specified in the service manual. Before starting the excavator, inspect all connections for leaks.

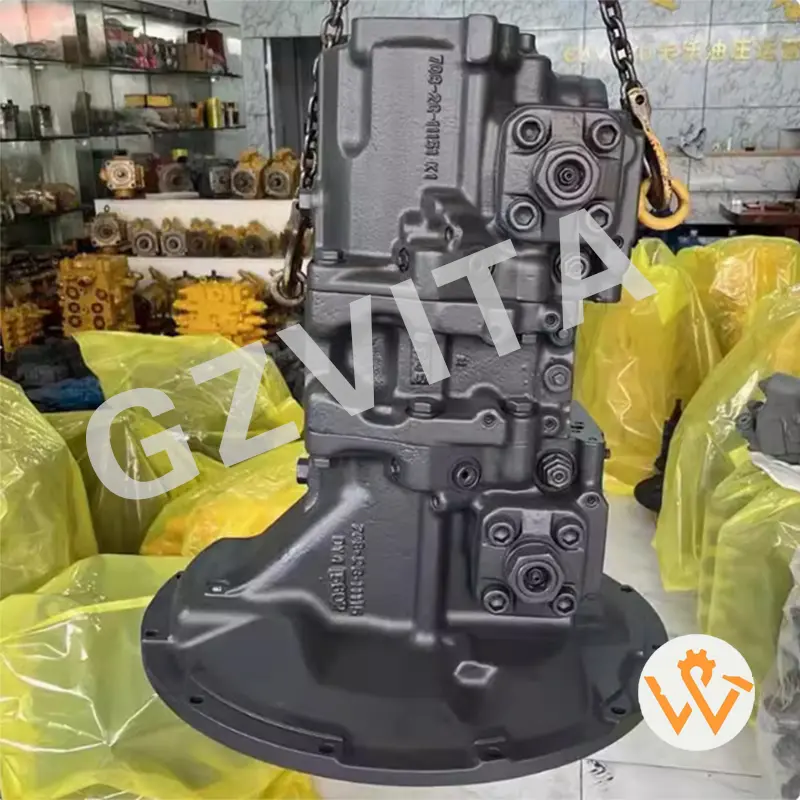

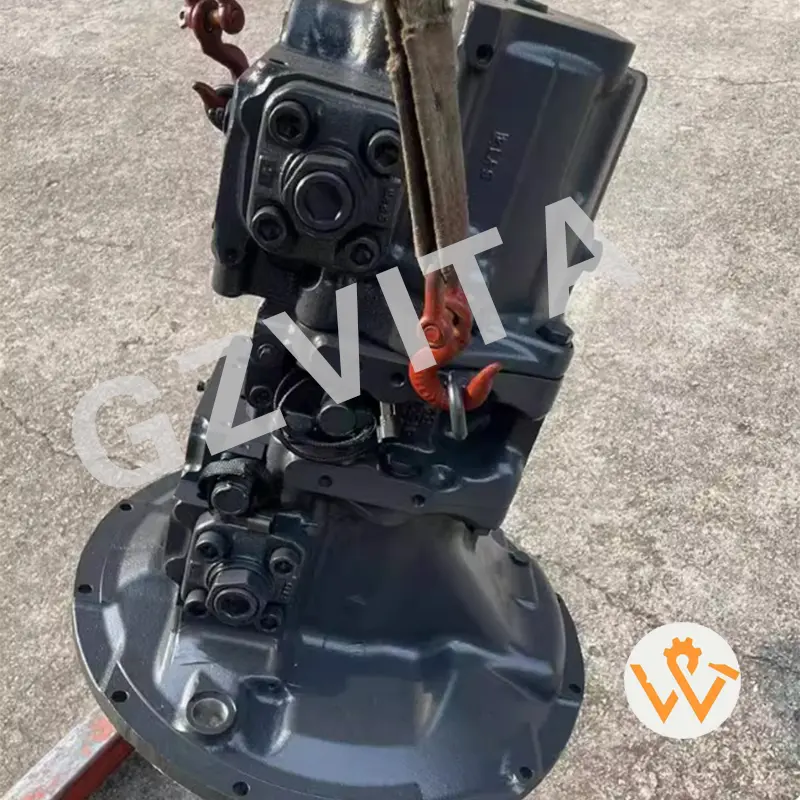

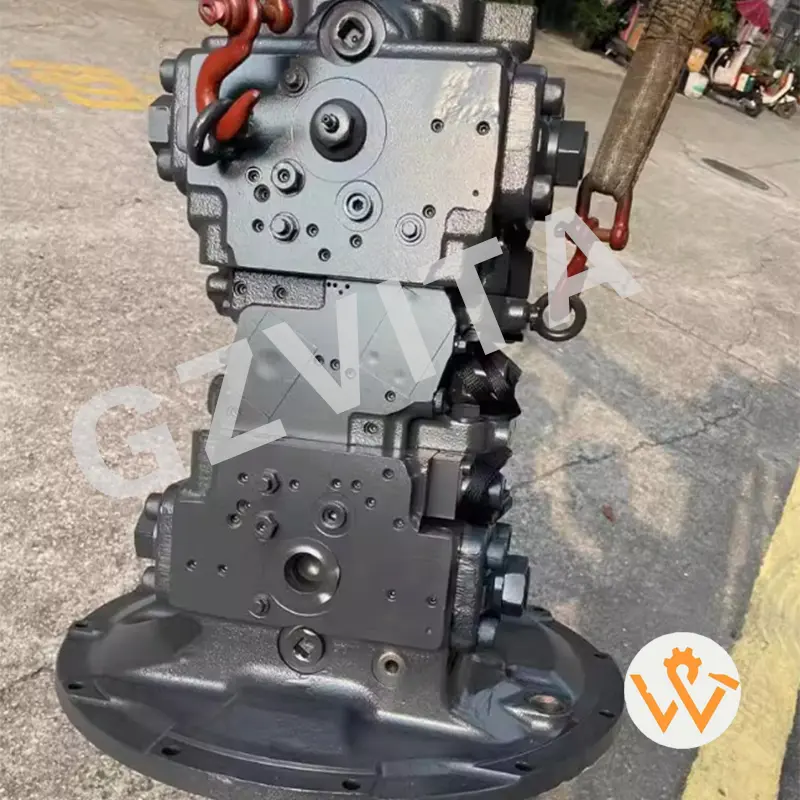

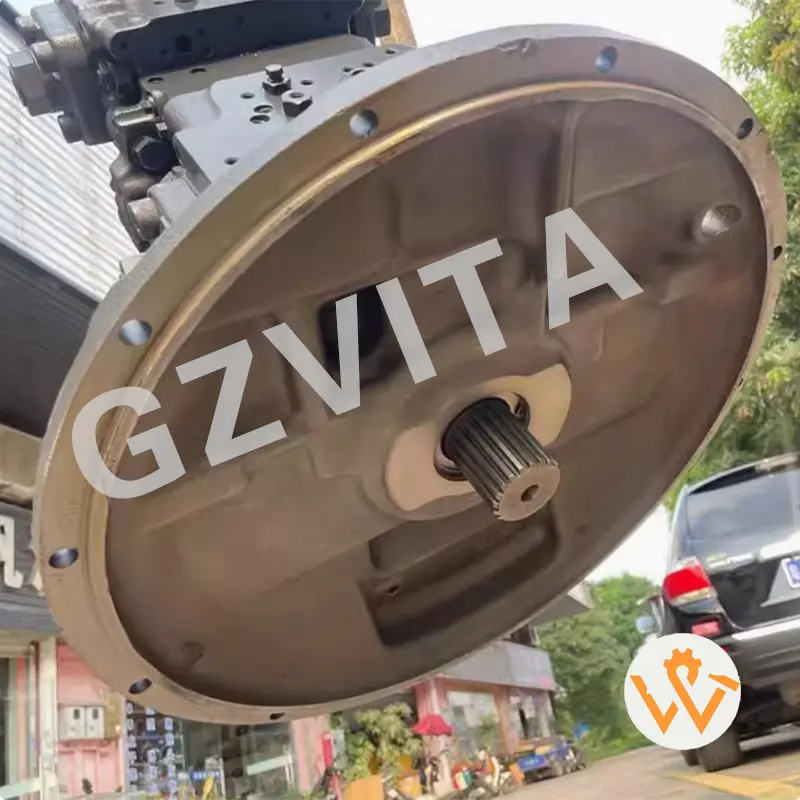

Product Display
PVD-00B-14P Main Pump For Kubota Excavator U15 U17 Hydraulic pump
PVD-00B-14P Main Pump For Kubota Excavator U15 U17 Hydraulic pump (01)
PVD-00B-14P Main Pump For Kubota Excavator U15 U17 Hydraulic pump (02)
Frequently Asked Questions
Q1: What safety measures should I take before installing the main pump?
Always wear suitable PPE (gloves, safety goggles, hard hat), turn off the excavator engine, disconnect the battery, and depressurize the hydraulic system to ensure a safe workspace.
Q2: Why is it important to clean the mounting surface?
Cleaning the mounting surface of all debris and old gasket remnants is critical to ensure a tight, perfect seal and prevent future hydraulic fluid leaks.
Q3: How do I properly secure the mounting bolts on the new pump?
Start by hand-tightening the bolts to ensure alignment. Then, use a torque wrench to tighten them to the exact specifications defined in the excavator manufacturer's manual.
Q4: What should I keep in mind when routing the hydraulic hoses?
Ensure the hoses are correctly routed according to the system layout to avoid any twists, kinks, or stress during operation, which could lead to hose wear or failure.
Q5: When should I check the system for hydraulic leaks?
You should check all connections for leaks right after reconnecting the lines and refilling the system with new hydraulic fluid, prior to starting the excavator engine.
