Description of the Ignition Switch in an Excavator

The ignition switch in an excavator is a crucial component that controls the starting and stopping of the engine. It serves as the interface between the operator and the engine’s electrical system, ensuring that the engine can be safely and effectively started and shut down. Here’s a detailed description of the ignition switch and its functions:

Basic Functionality

The primary function of the ignition switch is to initiate the engine start-up process and to turn off the engine when necessary. When the operator turns the key or presses the start button, the ignition switch sends an electrical signal to the starter relay, which activates the starter motor to crank the engine.

Working Principle

• Starting Phase: When the operator turns the ignition key to the “Start” position, the switch closes the circuit, allowing current to flow from the battery to the starter relay. The relay then connects the power to the starter motor, which begins to turn.
• Ignition Phase: Simultaneously, the ignition switch sends a signal to the ignition system, ensuring that the fuel-air mixture in the engine’s cylinders is ignited, allowing the engine to start running.
• Running Phase: Once the engine is successfully started, the operator can turn the ignition switch to the “Run” position, which keeps the engine operating.

Safety Features

• Keyed Ignition: Only the operator with the correct key can start the engine, enhancing security.
• Prevention of Misoperation: Some ignition switches are designed to prevent the starter from engaging while the engine is running, protecting the starter motor from damage.
• Fuse Protection: The ignition circuit typically includes fuses to protect against electrical overloads, ensuring safe operation.

Maintenance and Inspection

• Check Contact Points: Ensure that the contact points of the ignition switch are not worn or corroded.
• Electrical Connections: Inspect cables and connectors for secure connections to avoid starting issues due to poor contact.
• Function Testing: Periodically test the ignition switch to ensure it operates correctly in all positions.

Conclusion

Conclusion

Product Display

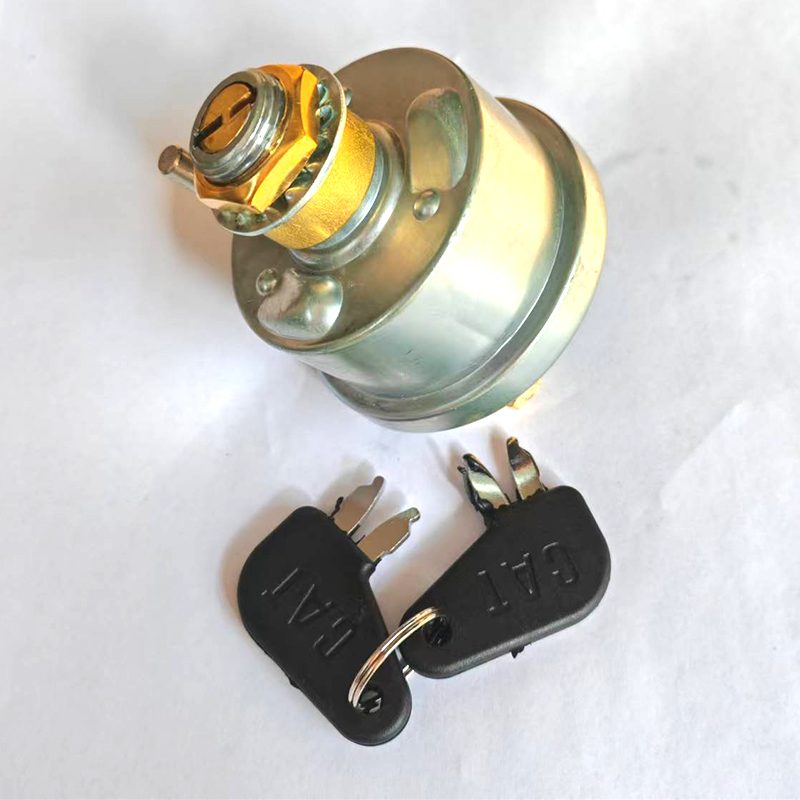

7N-0718 igniton Switch with 2 keys 7N0718 7N0719 For CAT324D 330D 336

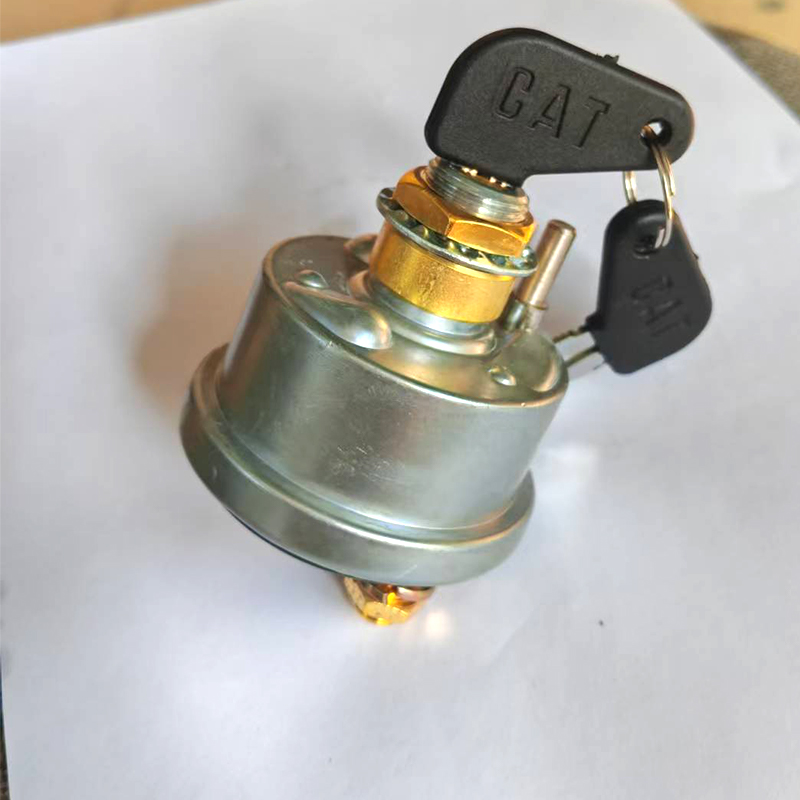

7N-0718 igniton Switch with 2 keys 7N0718 7N0719 For CAT324D 330D 33601

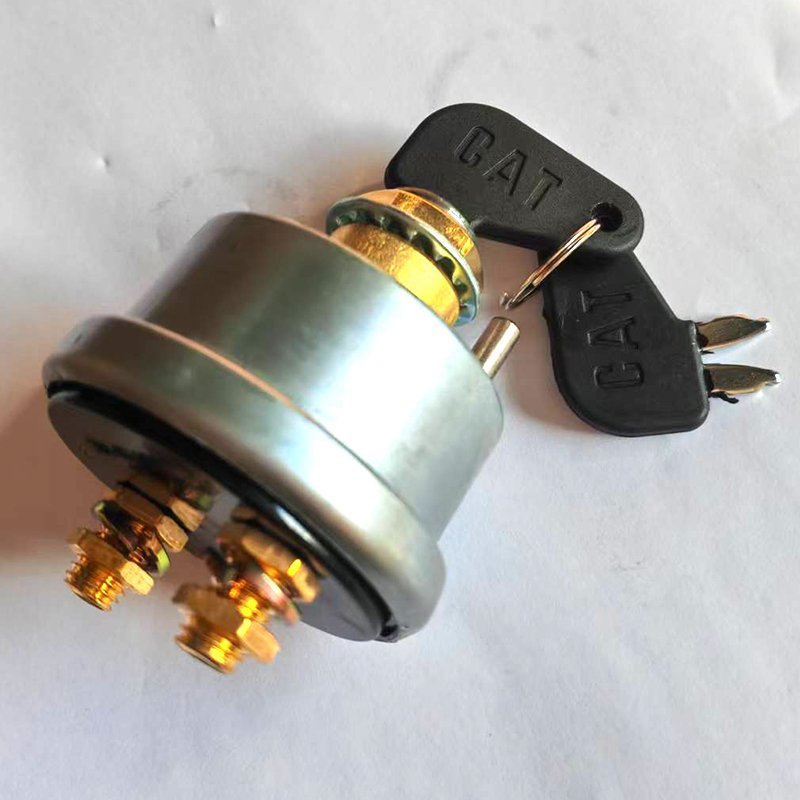

7N-0718 igniton Switch with 2 keys 7N0718 7N0719 For CAT324D 330D 33602
