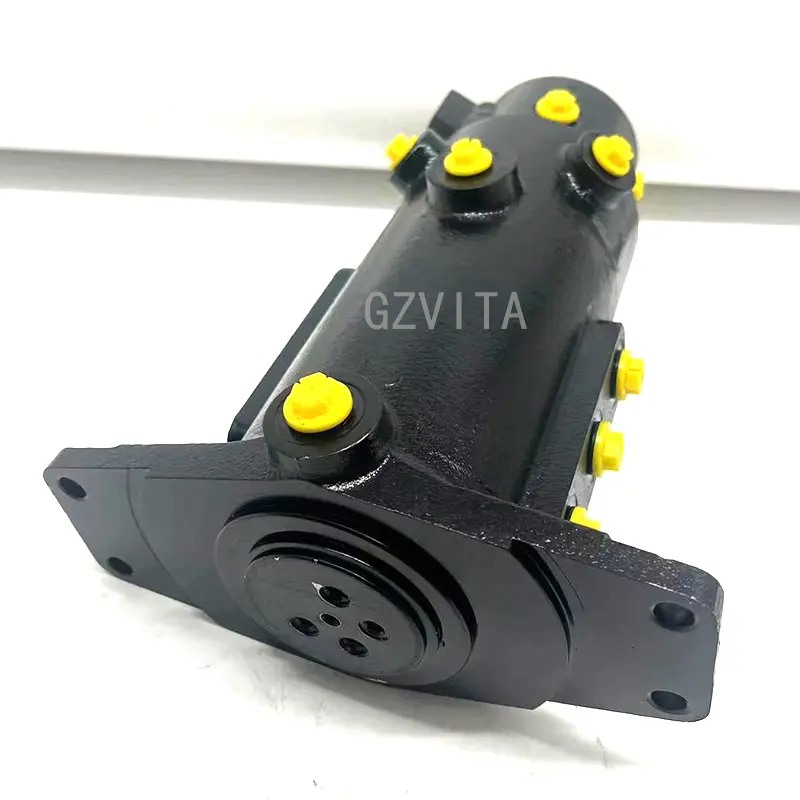

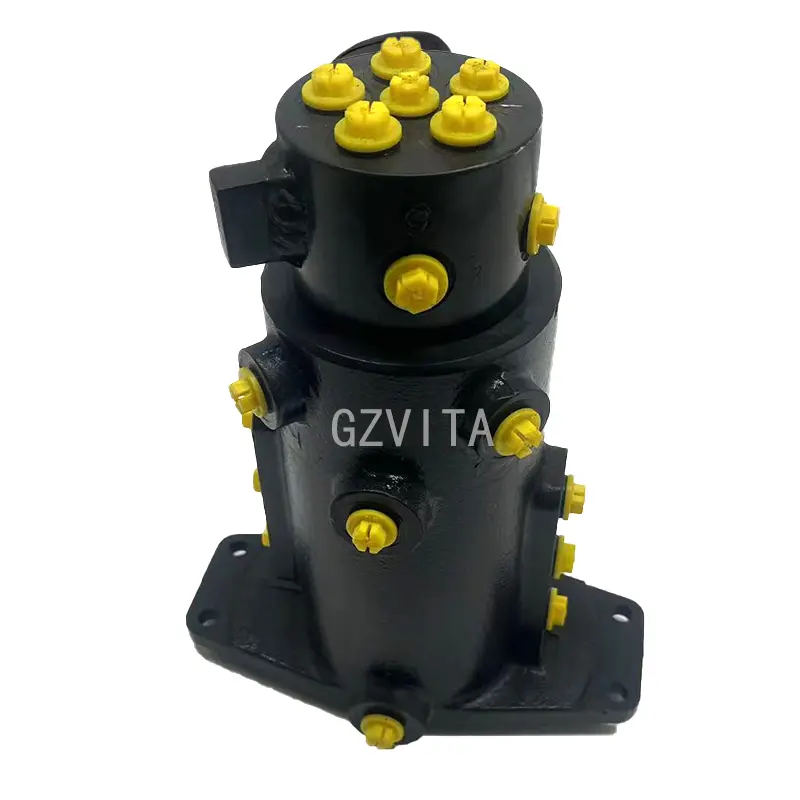

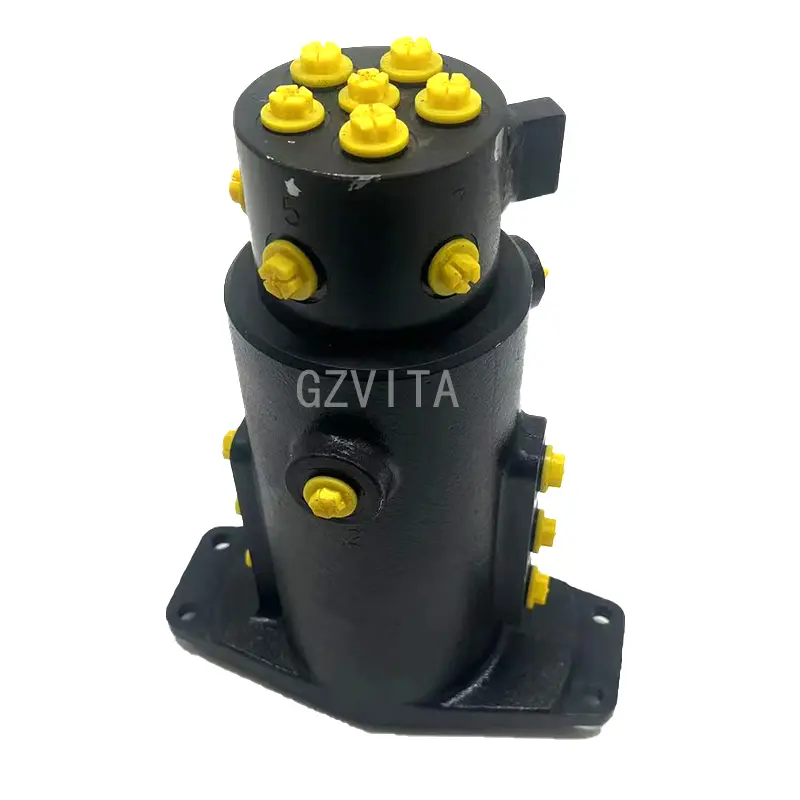

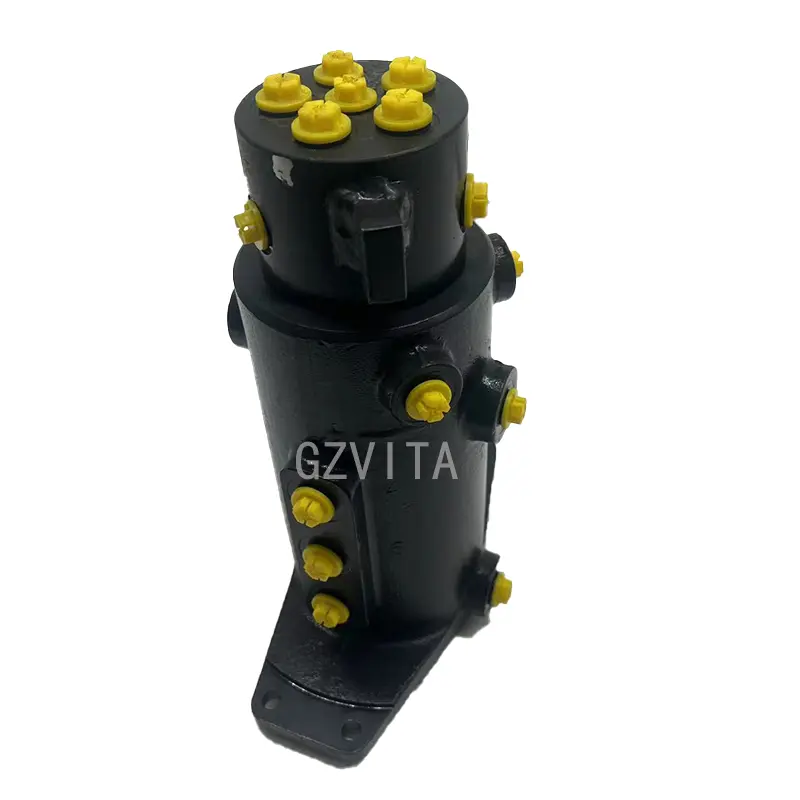

A swivel joint assembly is a critical component in excavators, particularly in hydraulic systems. It allows for the transfer of hydraulic fluid between stationary and rotating parts of the machine, enabling smooth and efficient operation. Here is an overview of the swivel joint assembly, its function, and its importance in excavator operations.
A swivel joint assembly consists of a series of interconnected components that allow for rotational movement while maintaining a fluid connection. It typically includes:
The main component that allows for rotation. It usually has a cylindrical shape and is designed to handle high pressures.
These prevent hydraulic fluid from leaking out of the joint and protect against contaminants entering the system.
Some swivel joints may include bearings to facilitate smooth rotation and reduce friction.
These are openings through which hydraulic fluid enters and exits the joint.
The primary function of the swivel joint is to transfer hydraulic fluid from the stationary part of the excavator (like the chassis) to the rotating parts (like the boom or arm) without causing leaks or interruptions in flow.
The swivel joint allows for the necessary rotational movement of the excavator's components, enabling the machine to perform various tasks, such as digging, lifting, and swinging.
It provides flexibility in movement, allowing the excavator to operate in tight spaces and perform complex maneuvers.
A well-functioning swivel joint assembly is crucial for the overall efficiency of the excavator. It ensures that hydraulic power is effectively transmitted to the working components, allowing for smooth operation.
High-quality swivel joints are designed to withstand the harsh conditions of construction sites, including exposure to dirt, debris, and extreme temperatures. This durability is essential for minimizing downtime and maintenance costs.
Properly functioning swivel joints help prevent hydraulic leaks, which can pose safety hazards to operators and other personnel on the job site.
To ensure the longevity and reliability of the swivel joint assembly, regular maintenance is essential. This may include:
Regularly checking for signs of wear, leaks, or damage.
Ensuring that seals and bearings are adequately lubricated to reduce friction and wear.
Timely replacement of worn or damaged components to prevent failure during operation.
Its primary role is to transfer high-pressure hydraulic fluid continuously between the stationary lower chassis and the rotating upper structure of the excavator, enabling full 360-degree rotation.
A damaged swivel joint can cause hydraulic fluid leaks, resulting in a loss of power to the travel motors, sluggish rotational movements, and potential safety risks on the job site.
The hydraulic seals are typically the most prone to wear over time due to constant friction and high pressures. Bearings can also experience wear under heavy structural loads.
It should be inspected during standard routine maintenance cycles, or immediately if you notice tracking issues, a drop in travel power, or visible hydraulic fluid leaks around the undercarriage center.
If the wear is limited to the seals, the joint can often be rebuilt with a seal kit. However, if the internal metal body or ports are heavily scored or damaged, a full replacement is required.
