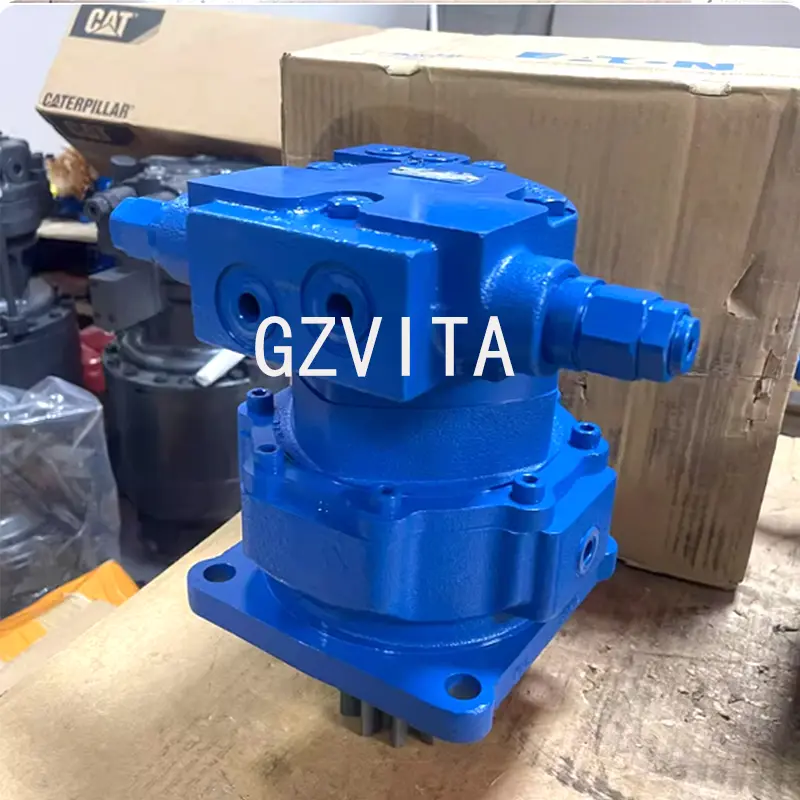

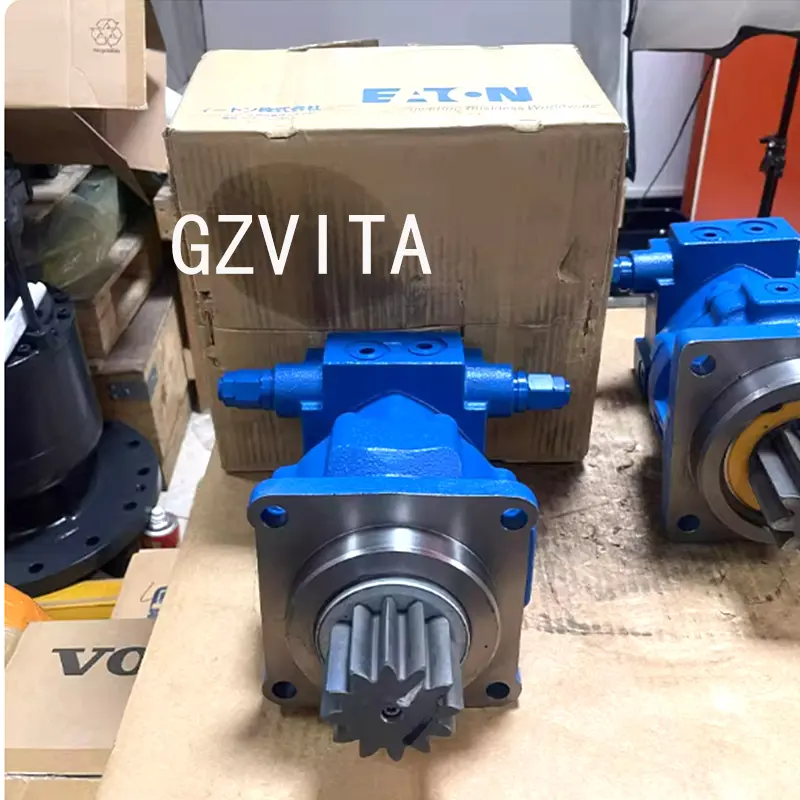

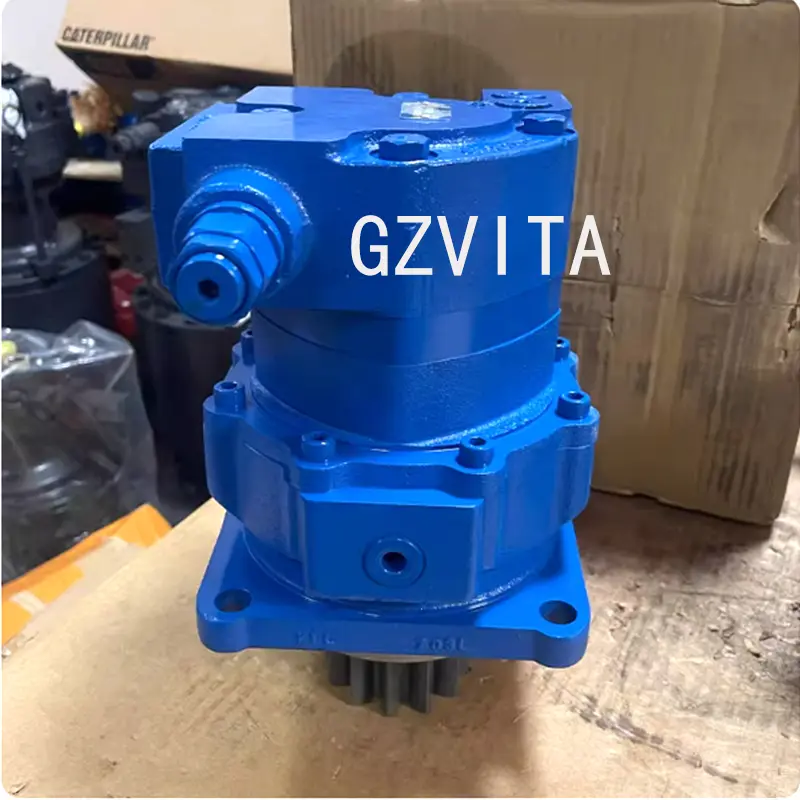

Custom XCMG XE26 Rotary pump Slewing Motor Swing Moto 804017152 4PH25C3478D Rotary reducer /Reduction gearbox Rotary Reducer Gear Box Assy Manufacturer, Product

1.Product Name:	Gear Box Assy
2.Part number:	4PH25C3478D Â 804017152
3.Compatible For:	XE26
4.Leading time:	1-3 days
5.Packing way:	Neutral packing or XE Genuine Part Packing

Send Inquiry

Product Description

How many relief valves are needed on an excavator?

The number of relief valves used on an excavator can vary depending on the specific model and design of the machine. However, most excavators typically have multiple relief valves to ensure safe and efficient operation. Here are some common types of relief valves found on excavators:

Main Relief Valve

This is usually the primary relief valve that protects the hydraulic system from excessive pressure. It is typically located in the hydraulic pump circuit.

Pilot Relief Valves

These valves are used in the pilot control system to regulate the pressure for the control circuits, ensuring that the operator can control the machine's functions smoothly.

Auxiliary Relief Valves

If the excavator is equipped with auxiliary hydraulic functions (such as for attachments like grapples or hammers), there may be additional relief valves dedicated to those circuits.

Boom and Arm Relief Valves

Some excavators have specific relief valves for the boom and arm circuits to prevent overloading and ensure safe operation during lifting and digging.

In summary: While the exact number of relief valves can vary, excavators generally have several relief valves to manage different hydraulic circuits and ensure safe operation. For precise information, it is best to refer to the specific excavator's service manual or technical documentation.

Frequently Asked Questions

How many relief valves are typically installed on an excavator?

Most excavators feature multiple relief valves rather than just one. These include the main relief valve, pilot relief valves, boom and arm relief valves, and auxiliary valves, depending on the machine's configuration.

What is the primary function of the Main Relief Valve?

The Main Relief Valve acts as the primary protection for the entire hydraulic system. It prevents system pressure from exceeding safe design limits, usually located within the hydraulic pump circuit.

Why are Boom and Arm Relief Valves necessary?

These valves are dedicated to the boom and arm circuits. They prevent overloading and mechanical failures by managing hydraulic pressure spikes specifically during lifting, digging, and heavy load handling.

Are there special relief valves for excavator attachments?

Yes, excavators equipped with auxiliary hydraulic functions for attachments (such as hydraulic hammers, grapples, or shears) utilize Auxiliary Relief Valves to safeguard those specific auxiliary lines.

How do I determine the exact locations and settings of relief valves on my excavator?

Because locations and pressure settings vary significantly by make and model, you should always consult the official service manual or technical documentation provided for your specific excavator.

Product Detail
