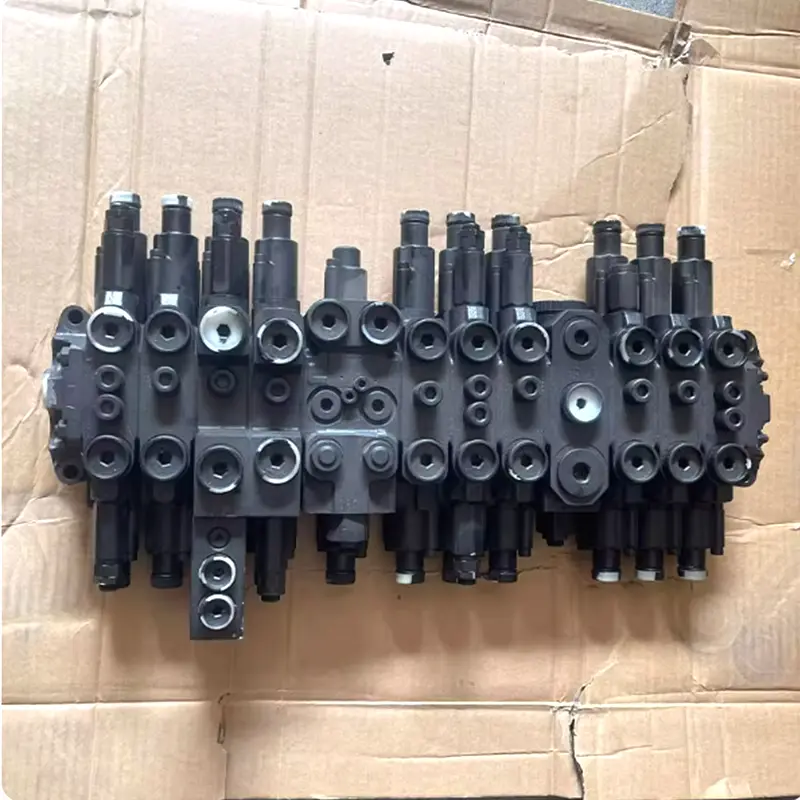

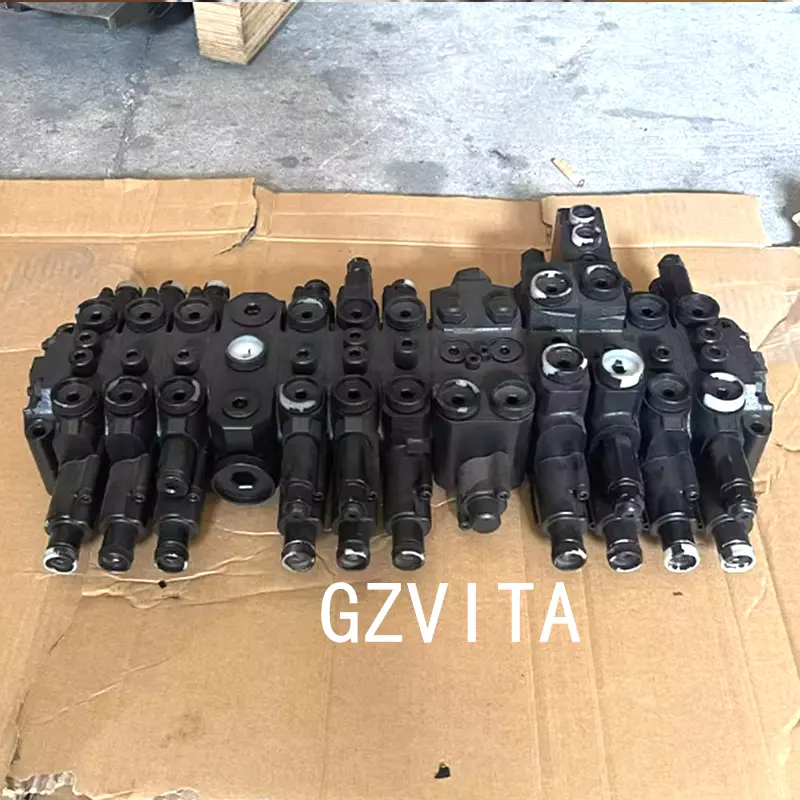

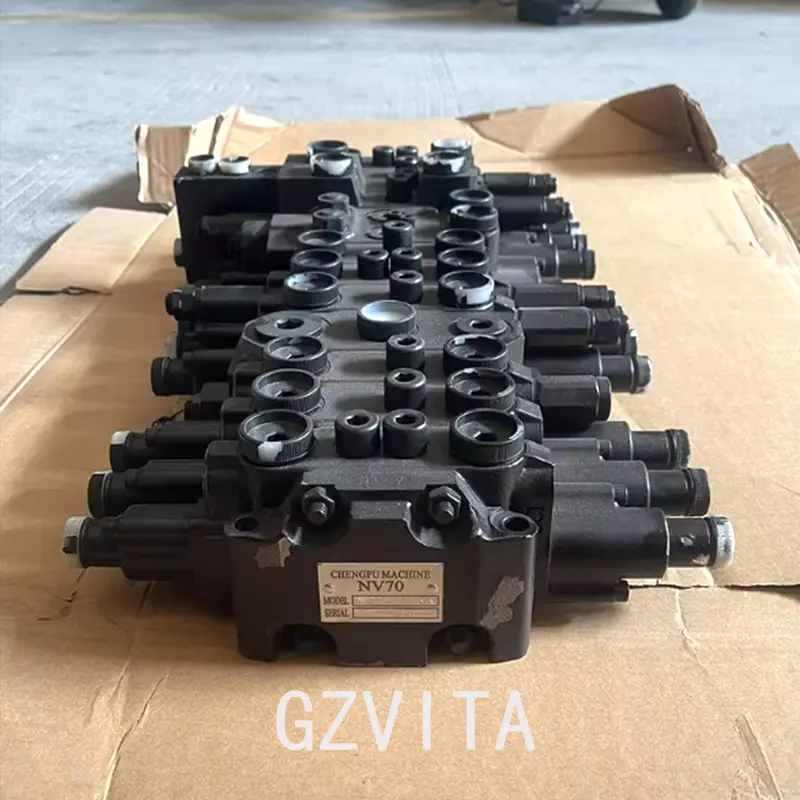

The distribution valve assembly for JCB equipment is an essential component in the hydraulic system, responsible for directing hydraulic fluid to various functions of the machine, such as the boom, bucket, and other attachments. Here are the key components typically found in a JCB distribution valve assembly:
The main housing that contains the internal components and passages for hydraulic fluid.
These are movable components within the valve body that control the flow of hydraulic fluid to different circuits. They can be shifted to direct fluid to specific functions.
These components are used to operate the spool valves, often controlled by levers or joysticks in the operator's cab.
These are used to prevent hydraulic fluid leaks and maintain pressure within the system.
These are the entry and exit points for hydraulic fluid, connecting the distribution valve to the hydraulic lines leading to various machine functions.
This component helps protect the hydraulic system from excessive pressure by diverting fluid back to the reservoir when necessary.
A pathway for hydraulic fluid to return to the reservoir after it has completed its work.
This secures the distribution valve assembly to the machine frame.
