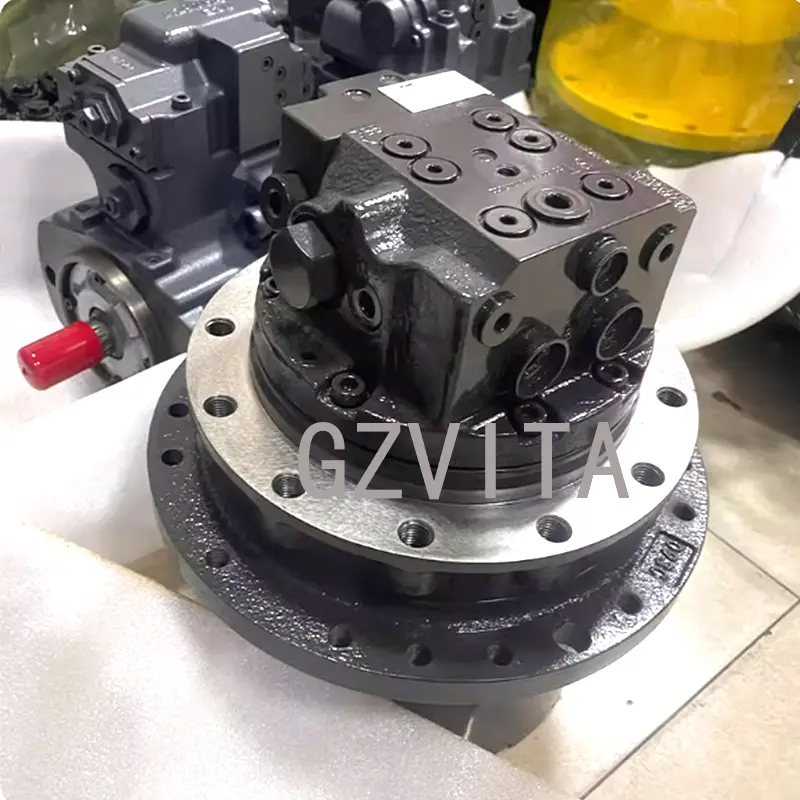

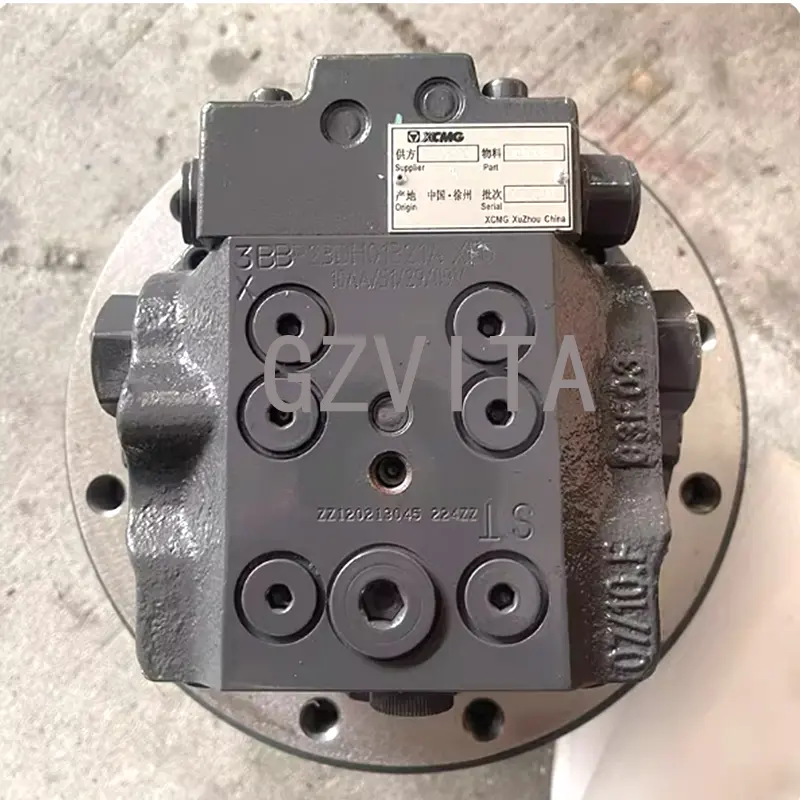

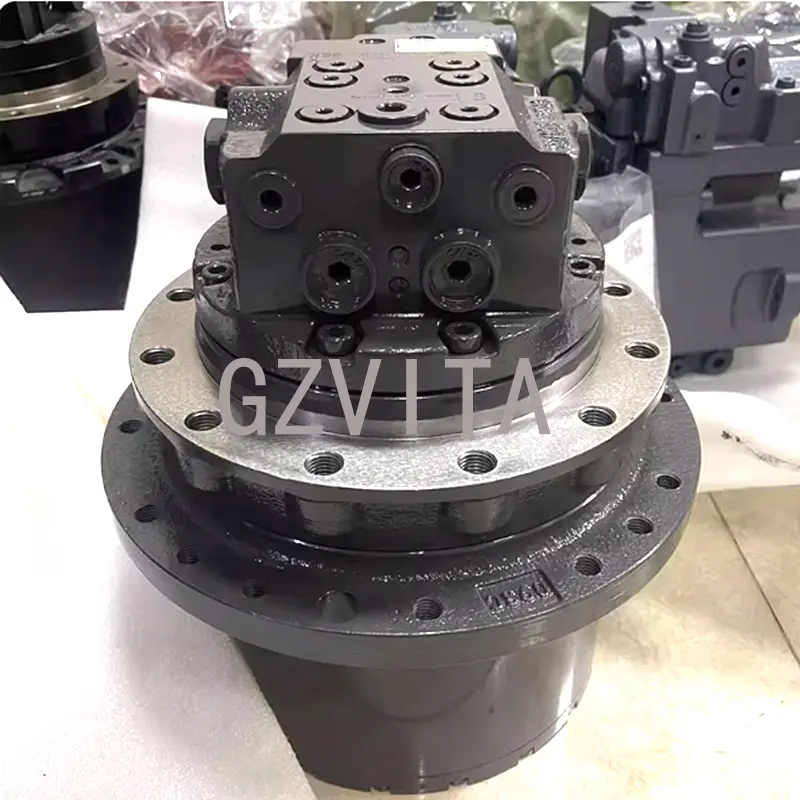

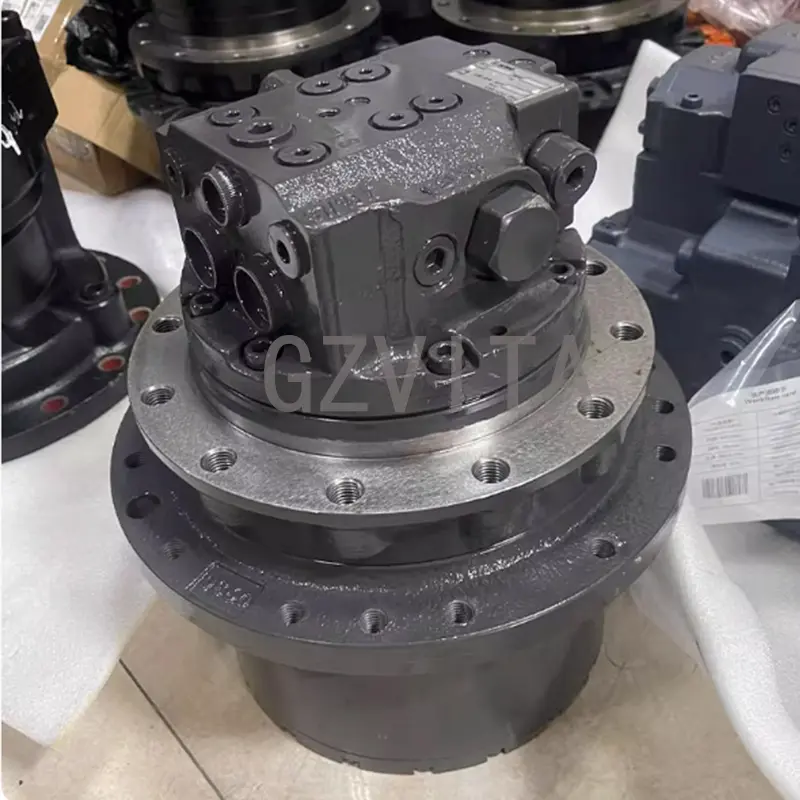

Wholesale XCMG Excavator XE80 85 90 95 105 115 Traveling Motor FTM10 Travel Reduction Gearbox Walking Speed Reducer Manufacturers, Supplier

Hydraulic travel motors – Provide rotary power to the track wheels.

Dual independent motors – Allow for counter-rotation and pivot turns.

Travel control levers/pedals – Operator inputs for speed and direction.

Main hydraulic pump – Supplies high-pressure oil to the travel system.

Travel control valves – Direct flow from the pump to the left or right motor.

Two-speed travel selection – Switches between high-speed and high-torque modes.

Speed change valve – Alters motor displacement for speed shifting.

Travel reduction gearbox (final drive) – Reduces motor speed and increases torque.

Sprocket drive – Final drive output shaft directly turns the track sprocket.

Planetary gear sets – Inside the reduction gearbox for compact torque multiplication.

Swing bearings – Support the upper structure and allow it to rotate during travel turns.

Track frame – Rigid structure housing the final drive and rollers.

Hydraulic pressure release – Allows the machine to be towed by disengaging the motors.

Travel brakes – Typically spring-applied, hydraulic-release parking brakes.

Hydraulic counterbalance valves – Prevent uncontrolled movement on slopes.

Pilot pressure system – Provides low-pressure control signals to the main valves.

Neutral bypass – Routes pump flow back to tank when travel levers are not activated.

Load sensing system – Adjusts pump flow and pressure based on demand.

Track tension adjustment – Maintains proper tension via grease cylinders.

Track rollers and idlers – Support and guide the track chain.

Pivot turn (spot turn) – Achieved by driving one track forward and the other reverse.

Gradual turn – Accomplished by varying speed between the two tracks.

Straight-line travel – Both motors receive equal flow and pressure.

Auto-deceleration system – Redects engine speed when travel levers are neutral.

Travel alarm – Sounds when the machine is set to move.

Speed sensors (if equipped) – Monitor track speed for control or monitoring systems.

Travel pressure relief valves – Protect the system from overloads.

Case drain lines – Return internal leakage oil from motors back to the tank.

Hydrostatic transmission principle – Uses variable hydraulic flow for infinite speed control.

Integrated pump-motor circuit – Forms a closed-loop for efficient power transfer.

Product Description

The distribution valve assembly for JCB equipment is an essential component in the hydraulic system, responsible for directing hydraulic fluid to various functions of the machine, such as the boom, bucket, and other attachments. Here are the key components typically found in a JCB distribution valve assembly:

Valve Body

The main housing that contains the internal components and passages for hydraulic fluid.

Spool Valves

These are movable components within the valve body that control the flow of hydraulic fluid to different circuits. They can be shifted to direct fluid to specific functions.

Actuators

These components are used to operate the spool valves, often controlled by levers or joysticks in the operator's cab.

Seals and O-rings

These are used to prevent hydraulic fluid leaks and maintain pressure within the system.

Additional System Components

Ports and Connectors

These are the entry and exit points for hydraulic fluid, connecting the distribution valve to the hydraulic lines leading to various machine functions.

Pressure Relief Valve

This component helps protect the hydraulic system from excessive pressure by diverting fluid back to the reservoir when necessary.

Return Line

A pathway for hydraulic fluid to return to the reservoir after it has completed its work.

Mounting Bracket

This secures the distribution valve assembly to the machine frame.

Frequently Asked Questions

What is the primary function of a JCB distribution valve assembly?

The main function of the distribution valve assembly is to direct hydraulic fluid to various parts of the JCB machine, such as the boom, bucket, and other attachments, allowing for controlled and precise operations.

How do spool valves work within the distribution valve assembly?

Spool valves are movable parts inside the valve body. When shifted (manually or electronically via actuators), they control and direct the flow of hydraulic fluid to specific circuits to activate desired machine functions.

What role do the actuators play?

Actuators physically operate the spool valves. They respond to operator inputs from the cab, which are typically managed via control levers or joysticks.

Why is a pressure relief valve necessary in the assembly?

The pressure relief valve is a safety mechanism designed to protect the system. It diverts excess hydraulic fluid back to the reservoir if the pressure levels exceed safe operating limits.

What are the warning signs of failing seals or O-rings?

Failing seals and O-rings typically lead to visible hydraulic fluid leaks, drop in system operating pressure, or sluggish response times from the machine's attachments.

Where does the return line send the hydraulic fluid?

The return line provides a dedicated pathway for the hydraulic fluid to safely flow back into the system's main reservoir after it has completed its operational work.
